2x Synchronizer for Carburettors and Injection system for Throttle Body Discount Set

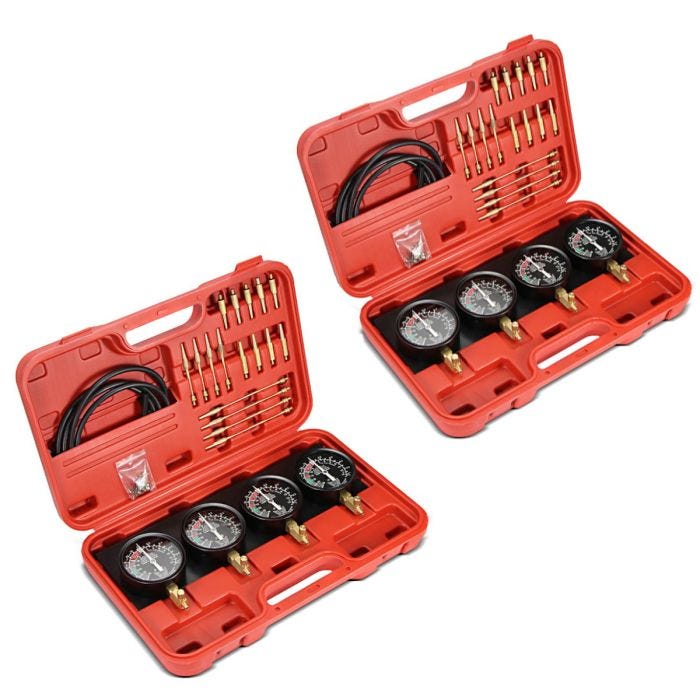

Scope of delivery: (2x214925) 2x Synchronizer for Carburettors and Injection system for Throttle Body
Synchronisation tester with four vacuum gauges for optimal synchronisation of carburettors and injection systems
Suitable for motorbike and passenger car engines with two-cylinder, three-cylinder or four-cylinder engines
The measurement enables synchronisation of all throttle bodies, this is essential for optimum engine performance and longevity
If fuel systems are not synchronised, the throttle valves open at different times and the cylinders do not develop their power at the same time, which can lead to power loss, poor idle and vibration. Due to uneven loading, bearing damage can occur on the crankshaft and connecting rod.
Synchronously operating throttle bodies ensure smooth engine running, low vibrations over the entire speed range, high acceleration and top speed, good pull and optimum combustion for low consumption and reduced pollutant emissions
By measuring the vacuum, the throttle valves can be reliably synchronised via the adjusting screw
Solid design, pressure gauge with metal housings mounted on metal plate
Suitable for professional workshop use as well as for hobby mechanics
Measuring range 0 to -1 bar
Scope of delivery:
4 x carburettor clocks manomenter, 92mm diameter
4 x connection hose 8x5x750 mm
4 x hose clamp sealing ring
4 x connector length 53mm / M6 x 0.75
4 x connector length 60mm / M6 x 1.00
4 x connector length 98mm / M5 x 0.75
4 x connector length 170mm / M5 x 0.75
1 x extension 6x55 mm
1 x storage case
