Motorcycle central jack + synchro tester throttle bodies compatible with BMW K 100 / LT / RS / RT

Set consisting of assembly stand + synchronous tester with four vacuum gauges
For bikes with double loop tubular frames up to 40cm
Material: steel, plastic protective jacket
Height adjustable 20 - 27 cm
Weight: 7.5 kg
Rubberized pad for effective scratch protection
Mounted in a few simple steps
Load capacity max. 400 kg.
Synchronization tester with four vacuum gauges for optimal synchronization of carburettors and injection systems
Suitable for motorcycle and car engines with two-cylinder, three-cylinder or four-cylinder engines
The measurement enables synchronization of all throttle valves, which is essential for optimum performance and longevity of the engine
In fuel systems that do not work synchronously, the throttle valves open at different times, the cylinders do not develop their power at the same time, which leads to Loss of power, bad idle and vibrations. Bearing damage to the crankshaft and connecting rod can result from uneven loading.
Synchronous throttle valves ensure smooth engine operation, low vibrations over the entire speed range, high acceleration and top speed, good torque and optimum combustion for low consumption and reduced pollutant emissions
By measuring the vacuum, the throttle valves can be reliably synchronized using the adjusting screw
Solid design, manometer with metal housing mounted on a metal plate
Suitable for the professional Workshop use as well as for hobby mechanics
Measuring range 0 to -1 bar
4 x carburetor gauges manometer, 92mm diameter
4 x connection hose 8x5x750 mm
4 x hose clamp sealing ring
4 x connector length 53mm / M6 x 0.75
4 x connector length 60mm / M6 x 1.00
4 x connector length 98mm / M5 x 0.75
4 x connector length 170mm / M5 x 0.75
1 x extension 6x55 mm
1 x storage case

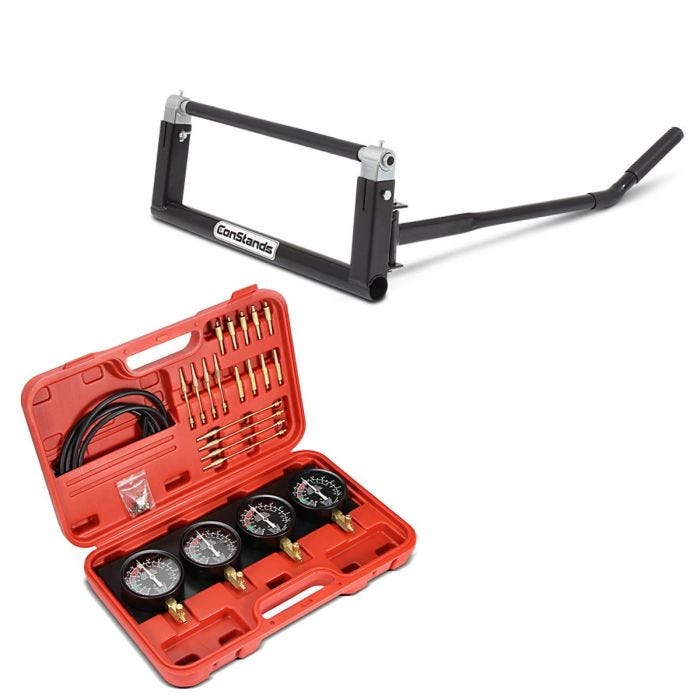

Scope of delivery: chopper assembly stand, synchronous tester with four vacuum gauges
